You send a text message from Marketing Cloud, check what was sent in Contact Builder, reports, or data view, and suddenly you are met with a puzzle:

Why is it sorted like this? Why can’t it just show the entire message?

Well, that’s not something I can answer definitely, but I can help you stitch the message back together.

Example Message

Let’s take our example message text and send it from Journey Builder:

💡 There is a theory which states that if ever anyone discovers exactly what the Universe is for and why it is here, it will instantly disappear and be replaced by something even more bizarre and inexplicable. There is another theory which states that this has already happened.

What can we say about this message?

• It uses a single 💡 emoji that doesn’t exist in the GSM 3.38 character set
  • This forces the length of each SMS part to decrease from 160 to 67 for multi-part messages (it would be 70 if it was just one message)
• It contains 277 characters and is way too long to fit into a single text message
  • Since the emoji is there, Unicode encoding has to be used, this message needs to be split into 5 (yes, five) text messages that appear as one on the recipient’s phone
  • If the emoji wasn’t there, the message would have to be split into 2 parts with a length of 160 characters

There’s no issue with actually sending SMS like this – it’s standard and works great.

Well, at least until we get to see how the reporting on this looks like. After the send, we will never ever be able to see the sent message that was actually sent to the customer.

Well, you could view the message in Content Builder, but that will not help much if your message is more complex and contains personalization, formatting and code that pulls data from other systems.

The Reporting Puzzle

Let’s send that Douglas Adams quote as our example message. It should be split into 5 parts when using the “Concatenate Message” option.

The message will be split into those parts:

1: "💡 There is a theory which states that if ever anyone discovers exa"
2: "ctly what the Universe is for and why it is here, it will instantly"
3: "disappear and be replaced by something even more bizarre and inexp"
4: "licable. There is another theory which states that this has already"
5: " happened."

1: "💡 There is a theory which states that if ever anyone discovers exa"
2: "ctly what the Universe is for and why it is here, it will instantly"
3: "disappear and be replaced by something even more bizarre and inexp"
4: "licable. There is another theory which states that this has already"
5: " happened."

Now, let’s see if our test message is displayed when we check the Engagement tab of a contact in Contact Builder:

The parts are in the following order from the bottom to the top:
5, 4, 1, 2, 3:

5: " happened."
4: "licable. There is another theory which states that this has already"
1: "💡 There is a theory which states that if ever anyone discovers exa"
2: "ctly what the Universe is for and why it is here, it will instantly"
3: "disappear and be replaced by something even more bizarre and inexp"

5: " happened."
4: "licable. There is another theory which states that this has already"
1: "💡 There is a theory which states that if ever anyone discovers exa"
2: "ctly what the Universe is for and why it is here, it will instantly"
3: "disappear and be replaced by something even more bizarre and inexp"

Can we trust the order to be the same when we send it again? Nope, the order changes – it’s 2, 4, 1, 3, 5 this time:

2: "ctly what the Universe is for and why it is here, it will instantly"
4: "licable. There is another theory which states that this has already"
1: "💡 There is a theory which states that if ever anyone discovers exa"
5: "disappear and be replaced by something even more bizarre and inexp"
3: " happened."

2: "ctly what the Universe is for and why it is here, it will instantly"
4: "licable. There is another theory which states that this has already"
1: "💡 There is a theory which states that if ever anyone discovers exa"
5: "disappear and be replaced by something even more bizarre and inexp"
3: " happened."

This order is seemingly random and we can’t rely on it to figure out a good algorithm for sorting the parts. We need something that will allow us to have all the parts in order, so that we might concatenate the message.

Checking the reporting

We have three options to check what was sent to a customer:

• Manually checking the engagement history of a contact (that we know we sent the message to)
• The SMS Message Detail Report in Analytics Builder > Reports
• The _SMSMessageTracking data view

We’ll resort to making queries using the data view – it has the most data available and we can automate it easily. Maybe the parts will appear in order there.

SELECT TOP 10
    MobileMessageTrackingID,
    MessageText,
    CreateDateTime
FROM
    _SMSMessageTracking
WHERE
    Name = 'Example - Quote of the Day - 42'
ORDER BY
    MobileMessageTrackingID DESC

SELECT TOP 10
    MobileMessageTrackingID,
    MessageText,
    CreateDateTime
FROM
    _SMSMessageTracking
WHERE
    Name = 'Example - Quote of the Day - 42'
ORDER BY
    MobileMessageTrackingID DESC

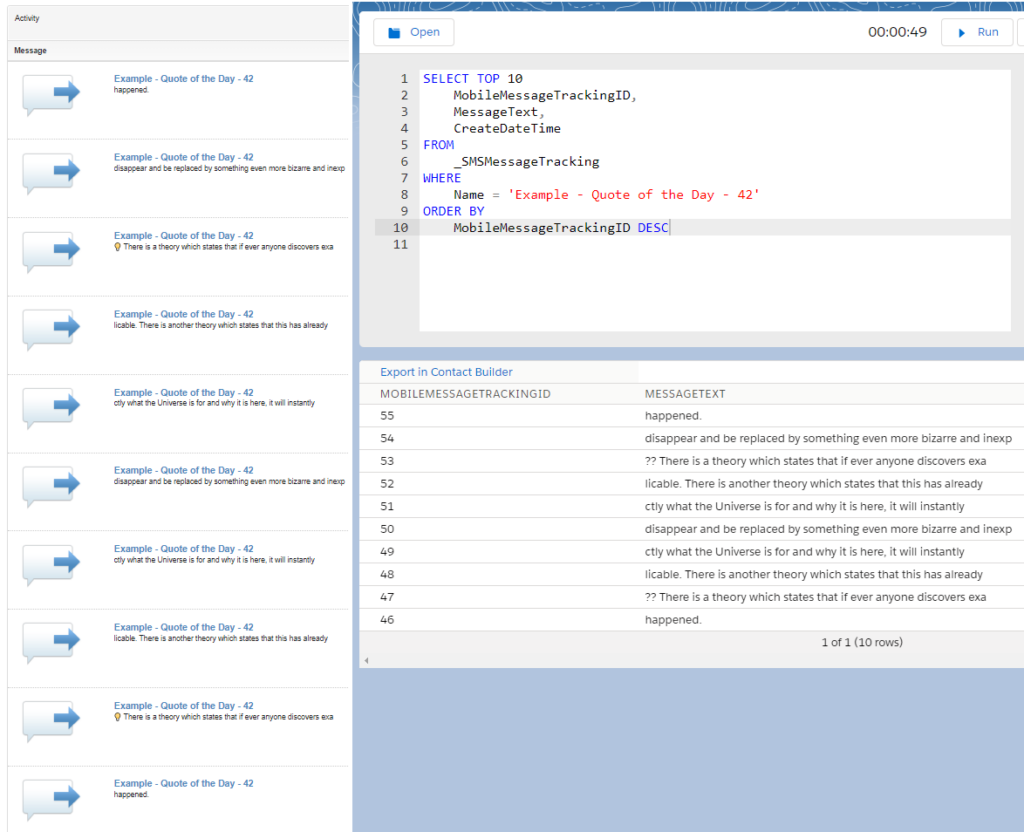

We run this query and see that the interface sorts the SMS parts in descending order based on the MobileMessageTrackingID (which itself seems to be assigned randomly):

We now also know we can’t base the order on the MobileMessageTrackingID value – we need to find something else.

What do we need to solve the Mobile Connect puzzle?

If we think about it, to stitch the messages together, we need two things:

1. A value that allows us to sort the parts in the correct order to reflect the content that was sent to our customers
2. A unifying ID that is the same across all message parts of a single concatenated text message

Let’s see if we can find something like this or solve this somehow.

The One Ring Field

We are lucky with the first requirement as somewhere around June 2020 a column called Ordinal was added to the SMSMessageTracking data view that does just that.

As per the data view documentation, it’s a numeric value that:

Represents the parts in a multi-part message. Represented in ascending order starting at 0.

Let’s quickly modify the previous query to sort the results by CreateDateTime and Ordinal,

SELECT TOP 10
    MobileMessageTrackingID,
    MessageText,
    Ordinal,
    CreateDateTime
FROM
    _SMSMessageTracking
WHERE
    Name = 'Example - Quote of the Day - 42'
ORDER BY
    CreateDateTime DESC,
    SubscriberId ASC,
    Ordinal ASC

SELECT TOP 10
    MobileMessageTrackingID,
    MessageText,
    Ordinal,
    CreateDateTime
FROM
    _SMSMessageTracking
WHERE
    Name = 'Example - Quote of the Day - 42'
ORDER BY
    CreateDateTime DESC,
    SubscriberId ASC,
    Ordinal ASC

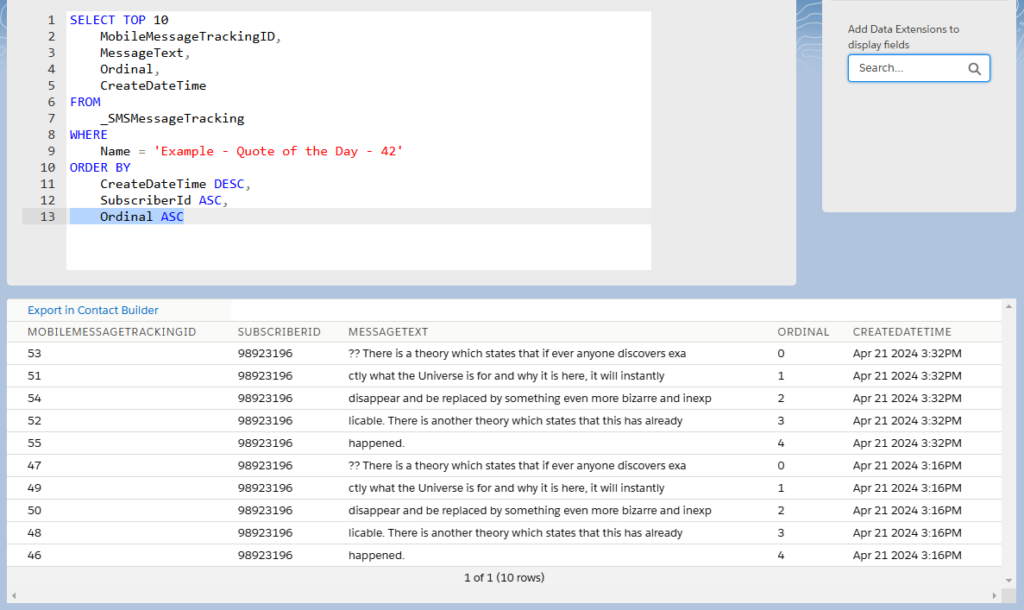

The results finally allow us to read the contents of the message we sent:

This might be already good for quick checks, but that’s not enough if we want to store the merged SMS parts in SFMC or even export it to some other system.

When looking at our sends, we can’t exclude the situation that more than one message will be sent at the same time to a single contact under the same Name*, so we need to find that unique message ID

_{*This could happen when you have external systems generating the texts and sending them through one outbound SMS.}

Isn’t There a Text Message Send ID Already?

We need to find something that will identify all parts of a given message. We check the _SMSMessageTracking documentation and what do we see?

There are already fields like SendID and SendGroupID, but those work only in their specific context (Automation Studio’s SMS or Mobile Connect DE sends) and will return NULL values for Journey Builder sends:

Not all hope is lost though:
If there’s no unique ID of a single message sent to a single contact, we can just make one combining multiple fields into one composite key or use them as multiple primary keys.

Building Our Composite Key

Let’s look into what values are available in the _SMSMessageTracking data view for us to combine them into one message

• As with emails, text messages are sent in jobs and batches, so we’ll use SMSJobID and SMSBatchID
  • Those fields have values for records with Outbound = 1
  • They can only send one message, so we don’t have to include the Name of the text message in our key

• We want something that identifies the contact, but sometimes the SubscriberKey value is not there, so we include the SubscriberID field instead which is much more reliable

• A single contact can have multiple phone numbers in Mobile Connect, so we include the Mobile field just to make sure to which number the was sent

• If you use more than one business unit, it might be worth including the MID as the business unit identifier

Combining this with code is simple:

 Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,

 Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,

This would result in the CompositeKey column storing a value like this:

123456789#525513406874@10969756301>4CCE7B6F-4684-4EB0-80B3-86C42C94AC14_1131469

123456789#525513406874@10969756301>4CCE7B6F-4684-4EB0-80B3-86C42C94AC14_1131469

We got the key now and along with the Ordinal field, we can start building an automation.

Building the Query​

Major blocks are out of the way now, so we just need to put everything together.

Query to Identify the Puzzle Pieces

The first query is quite simple:

SELECT
    s.*,
    Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,
    Format(CreateDateTime, 'yyyy-MM-dd') as CreateDateTimeExcel
FROM
    _SMSMessageTracking s
WHERE
        SMSJobID IS NOT NULL
    AND SMSBatchID IS NOT NULL
    AND Outbound = 1
    AND CreateDateTime > DateAdd(day, -7, GetDate())
    AND MessageText <> 'DELETED'

SELECT
    s.*,
    Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,
    Format(CreateDateTime, 'yyyy-MM-dd') as CreateDateTimeExcel
FROM
    _SMSMessageTracking s
WHERE
        SMSJobID IS NOT NULL
    AND SMSBatchID IS NOT NULL
    AND Outbound = 1
    AND CreateDateTime > DateAdd(day, -7, GetDate())
    AND MessageText <> 'DELETED'

What is happening here?

• We pull everything we want from _SMSMessageTracking
• We create the CompositeKey
  • This is required for us to join the various SMS parts as described above
  • Potential data extension configuration:
    • text field with a maximal length of 100
    • make it a primary key in addition to the MobileMessageTrackingID – this will make the processing faster
• Optional: We add the CreateDateTimeExcel field
  • text field with a maximal length of 10
  • this is only if you would want to export the data outside of SFMC and do pivots in Excel
• We limit the results in the WHERE clause:
  • to only Journey Builder sends with SMSJobID and SMSBatchID fields that are not null – this is necessary for building the proper CompositeKey
  • to only outbound messages (those are the only ones we are billed for)
  • to a specific date range
  • OPTIONAL:
    Filter out tracking records with “DELETED” MessageText – this is what is left behind in the data view after a contact has been removed from SFMC.
    • You might want to remove this condition, though:
      while the content of the message is gone, it still provides valuable information about SMS super message consumption

This will be a subquery that we’ll wrap in an aggregate query.

Final Query:​
Rebuilding the Text Messages

We built the CompositeKey, now we just need to use it to group the _SMSMessageTracking records (using both the key and the SMS name):

SELECT
    Name,
    sub.CompositeKey,
    STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) AS FullMessageText,
    MAX(CreateDateTime) AS CreateDateTime,
    FORMAT(MAX(CreateDateTime), 'yyyy-MM-dd hh:mm:ss') AS CreateDateTimeExcel,
    COUNT(*) AS MessageParts
FROM
    (
    SELECT
        s.*,
        Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,
        Format(CreateDateTime, 'yyyy-MM-dd') as CreateDateTimeExcel
    FROM
        _SMSMessageTracking s
    WHERE
            SMSJobID IS NOT NULL
        AND SMSBatchID IS NOT NULL
        AND Outbound = 1
        AND CreateDateTime > DateAdd(day, -7, GetDate())
        AND MessageText <> 'DELETED'
    ) sub
GROUP BY
    Name,
    sub.CompositeKey

SELECT
    Name,
    sub.CompositeKey,
    STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) AS FullMessageText,
    MAX(CreateDateTime) AS CreateDateTime,
    FORMAT(MAX(CreateDateTime), 'yyyy-MM-dd hh:mm:ss') AS CreateDateTimeExcel,
    COUNT(*) AS MessageParts
FROM
    (
    SELECT
        s.*,
        Concat(MID,'#',Mobile,'@',SubscriberId,'>',SMSJobID,'_',SMSBatchID) as CompositeKey,
        Format(CreateDateTime, 'yyyy-MM-dd') as CreateDateTimeExcel
    FROM
        _SMSMessageTracking s
    WHERE
            SMSJobID IS NOT NULL
        AND SMSBatchID IS NOT NULL
        AND Outbound = 1
        AND CreateDateTime > DateAdd(day, -7, GetDate())
        AND MessageText <> 'DELETED'
    ) sub
GROUP BY
    Name,
    sub.CompositeKey

Our key allows us to leverage the STRING_AGG() function in conjunction with our GROUP BY aggregation:

STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC)

STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC)

which concatenates (joins strings) from multiple MessageText records with the same CompositeKey ordered by the Ordinal value in ascending order.

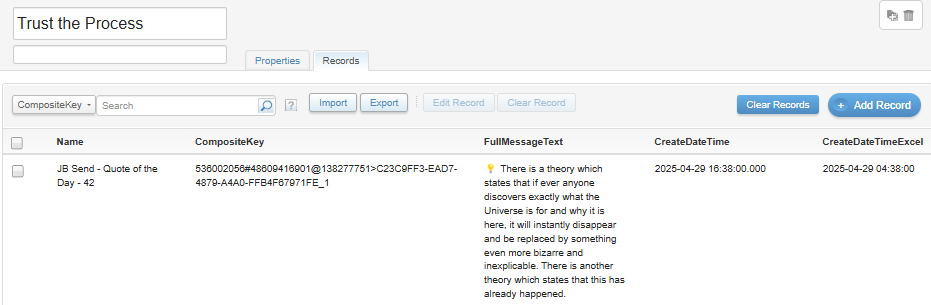

Here’s what will be returned after running the entire query, and how to prepare a basic set of columns for your data extension.

Sample result:

We’ve done it, this is what we wanted the entire text message is there, but there’s one thing you need to keep in mind:
This whole thing works better in Automation Studio.

See why below.

The Case Against Query Studio

The final query seen above might be good for super quick checks in this tool, but in the end it might fail you do to its limitations.

See the results rendered here:

Two things happened here that obscure what was sent:

• The 💡lightbulb emoji got converted to two question signs (??)
• The entire message was trimmed to just 255 characters:

?? There is a theory which states that if ever anyone discovers exactly what the Universe is for and why it is here, it will instantly disappear and be replaced by something even more bizarre and inexplicable. There is another theory which states that thi

?? There is a theory which states that if ever anyone discovers exactly what the Universe is for and why it is here, it will instantly disappear and be replaced by something even more bizarre and inexplicable. There is another theory which states that thi

This part was cut:

s has already happened.

s has already happened.

Why does this happen?

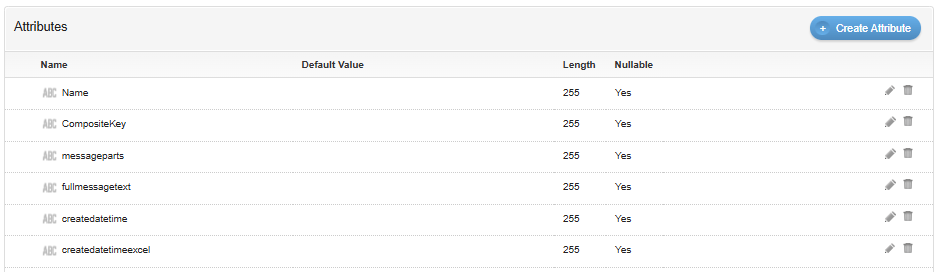

Query Studio pushes every value into text fields with a maximum length of 255 characters. See the QueryStudioResults data extension:

Every character past the 255-character limit is trimmed. This and the emoji transformation happen because it’s a Unicode character and Query Studio changed our FullMessageText from

STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) AS FullMessageText

STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) AS FullMessageText

to

rtrim(left(coalesce(CAST(STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) as char(255)),'<null>'), 255)) as fullmessagetext

rtrim(left(coalesce(CAST(STRING_AGG(MessageText, '') WITHIN GROUP (ORDER BY CompositeKey ASC, Ordinal ASC) as char(255)),'<null>'), 255)) as fullmessagetext

The CAST(… as char(255)) attempts to fit the emoji (which is a Unicode character) into the char data type, which does not support such signs (and is now limited to 255 characters). When this fails, an emoji character will be transformed into a single (for older emojis) or double question marks (for more modern emojis).
